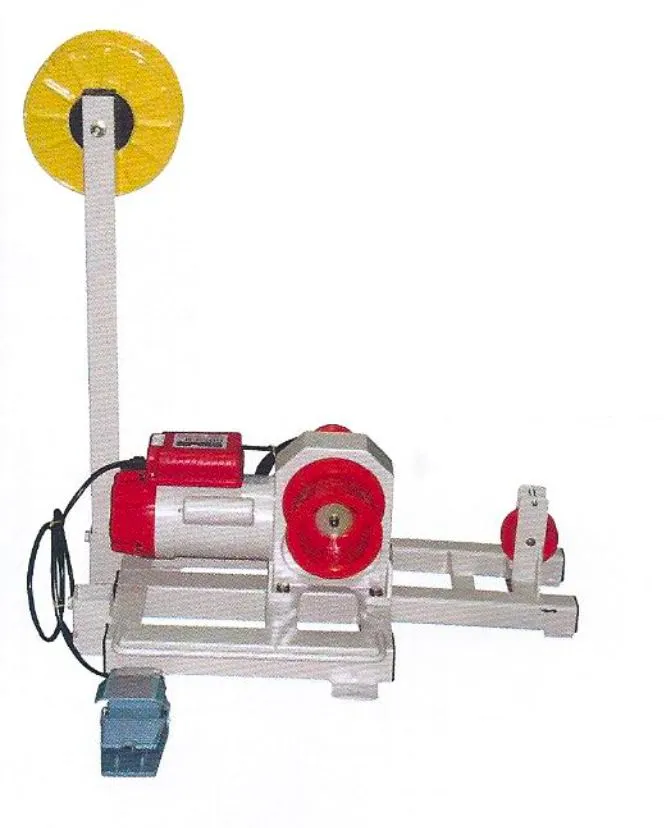

YAMA 110V, 2,500kg ,600W Cable Puller | Model : YAMA-H2500-100

Features :

• Dual pulling capacities of 2,500kg and 1,500kg
• Dual speeds vary according to drum size
• A overload protection switch ensure automatic shut-off
• Electromagnetic spring-apply failsafe brake
• Heavy duty high efficiency ball bearings on all running surfaces
• Rugged high power induction motor of proven reliability
• Case hardened gear train for maximum mechanical efficiency
• Suitable for continuous pulling to handle the toughest wall, ground and underground pulling applications

Specifications :

• Large Drum :
• Pulling Capacity : 1,500kg
• Rope Speed :
• 50Hz : 4.0 m/min
• 60Hz : 5.0 m/min
• Gear Train : Hypoid gear plus spur gears
• Gear Ratio : 154 : 1
• Motor Rating :
• 600W
• IP44
• Drum Dimensions :
• Length : 124mm
• Drum Diameter : 110mm
• Flange Diameter : 166mm
• Cable Puller Weight : 60kg
• Gross Weight : 83kg
• Body Dimension (L x W x H) : 457 x 362 x 267mm
• Box Dimension (L x W x H) : 610 x 720 x 500mm
• Small Drum :
• Pulling Capacity : 2,500kg
• Rope Speed :
• 50Hz : 2.5 m/min
• 60Hz : 3.0 m/min
• Gear Train : Hypoid gear plus spur gears
• Gear Ratio : 154 : 1
• Motor Rating :
• 600W
• IP44
• Drum Dimensions :
• Length : 104mm
• Drum Diameter : 74mm
• Flange Diameter : 94mm
• Cable Puller Weight : 60kg
• Gross Weight : 83kg
• Body Dimension (L x W x H) : 457 x 362 x 267mm
• Box Dimension (L x W x H) : 610 x 720 x 500mm

Standard Accessories :

• Rope Arm
• Base Plate
• Wire Rope 8mm x 50m
• Detachment rope storage roller
• Foot control with 2.0mm2 x 3C x 2m lead
• Power lead coming with 1.5mm2 x 3C x 3m
