Display: 6.01" AMOLED, 2,160x1,080px resolution, 401ppi; sRGB/DCI-P3 color space support. Rear cameras: Main camera: Sony IMX398 sensor, 16MP, 1.12μm pixel size, f/1.7 aperture, dual pixel phase detection autofocus, EIS; multi-shot noise reduction; 2160p/30fps video recording. Secondary camera: Sony IMX376K sensor, 20MP, 1.0μm pixel size, f/1.7 aperture. Front camera: Sony IMX371 sensor, 16MP, 1.0μm pixel size, f/2.0 aperture; 1080p/30fps video recording. OS/Software: Android 7.1.1 Nougat; OxygenOS custom overlay. Chipset: Qualcomm Snapdragon 835: octa-core CPU (Kryo 280, 4x2.45GHz 4x1.9GHz), Adreno 540 GPU. Memory: 6GB of LPDDR4X RAM; 64GB UFS 2.1 storage. Battery: 3,300mAh Li-Po (sealed); Dash Charge proprietary fast charging (5V/4A). Connectivity: Dual SIM.
| Launch | | 2017, November |
| Available. Released 2017, November |
| Body | | 156.1 x 75 x 7.3 mm (6.15 x 2.95 x 0.29 in) |
| 162 g (5.71 oz) |
| Front glass, aluminum frame, back |
| Dual SIM (Nano-SIM, dual stand-by) |
| Display | | Optic AMOLED capacitive touchscreen, 16M colors |
| 6.01 inches, 93.7 cm2 (~80.0% screen-to-body ratio) |
| 1080 x 2160 pixels, 18:9 ratio (~401 ppi density) |
| Corning Gorilla Glass 5 |
| | DCI-P3 |
| Platform | | Android 7.1.1 (Nougat), upgradable to Android 9.0 (Pie); OxygenOS 9.0.4 |
| Qualcomm MSM8998 Snapdragon 835 (10 nm) |
| Octa-core (4x2.45 GHz Kryo & 4x1.9 GHz Kryo) |
| Adreno 540 |
| Memory | | No |
| 64GB 6GB RAM, 128GB 8GB RAM |
| Main Camera | | 16 MP, f/1.7, 27mm (wide), 1/2.8", 1.12µm, PDAF
20 MP, f/1.7, 27mm (wide), 1/2.8", 1.0µm, AF, PDAF |
| Dual-LED flash, HDR, panorama |
| 2160p@30fps, 1080p@30/60fps, 720p@30/120fps, Auto HDR |
| Selfie camera | | 16 MP, f/2.0, 20mm (wide), 1/3.1", 1.0µm |
| Auto-HDR |
| 1080p (gyro-EIS) |
| Sound | | Yes |
| Yes |
| | Active noise cancellation with dedicated mic
Dirac HD sound |
| Comms | | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot |
| 5.0, A2DP, LE, aptX HD |
| Yes, with A-GPS, GLONASS, BDS, GALILEO |
| Yes |
| No |
| 2.0, Type-C 1.0 reversible connector |
| Features | | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
| Battery | | Non-removable Li-Po 3300 mAh battery |
| Fast battery charging 5V 4A 20W (Dash Charge) |

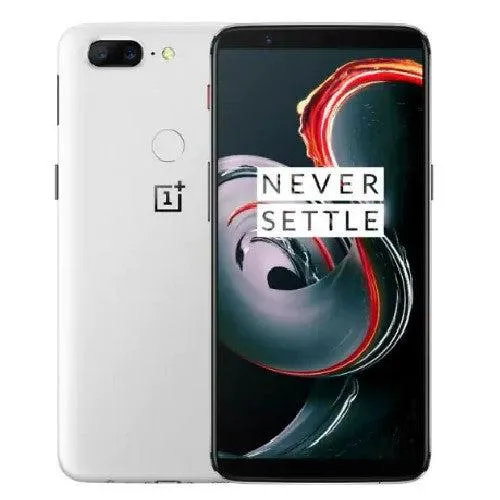

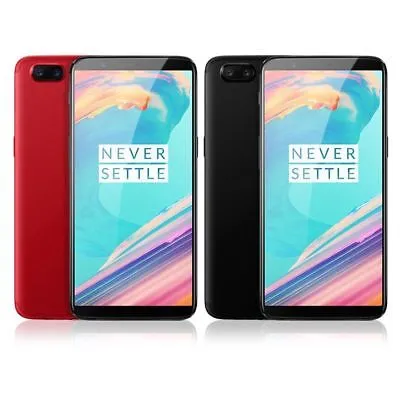

| Misc | | Midnight Black, Lava Red, Sandstone White (128/8GB only) |
| A5010 |
| |
