Product Details

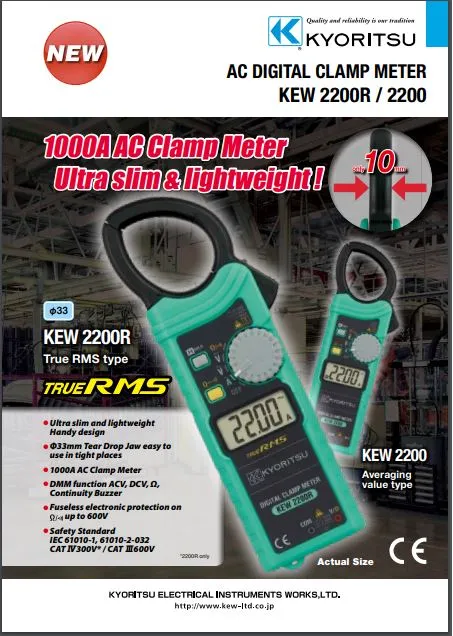

Features:

  • Ultra Slim and lightweight handy design
  • Φ33mm Tear Drop Jaw easy to use in tight places
  • 1000A Ac clamp meter
  • DMM function ACV, DCV,Ω,continuity buzzer
  • Fuseless electronic protection on Ω/ up to 600V
  • Safety standard IEC 61010-1, 61010-2-032 CAT IV300V / CAT III 600V

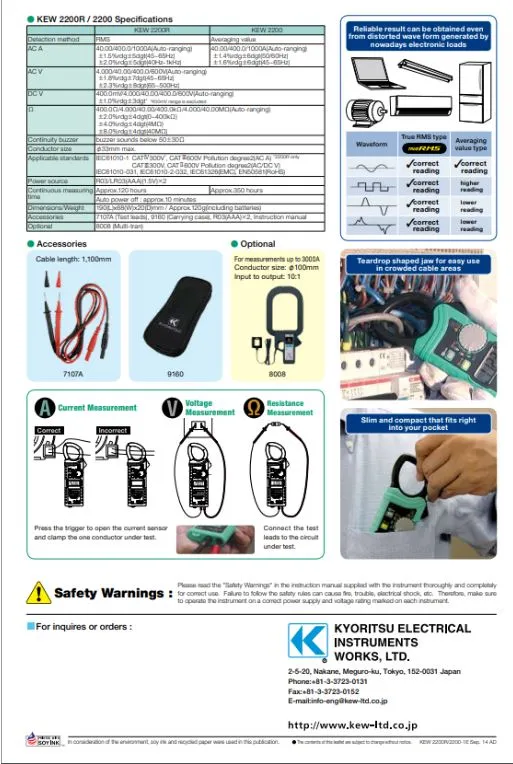

Specifications:

  • AC A : 40.00/400.0/1000A (Auto-ranging)
    • ±1.5%rdg±5dgt (45 - 65Hz)
    • ±2.0%rdg±5dgt (40 - 1kHz)
  • AC V : 4.000/40.00/400.0/600V (Auto-ranging)
    • ±1.8%rdg±7dgt (45 - 65Hz)
    • ±2.3%rdg±8dgt (65 - 500Hz)
  • DC V : 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
    • ±1.0%rdg±3dgt (400mV range is excluded.)
  • Ω : 400.0Ω/4.000/40.00/400.0kΩ/4.000/40.00MΩ (Auto-ranging)
    • ±2.0%rdg±4dgt (0 - 400kΩ)
    • ±4.0%rdg±4dgt (4MΩ)
    • ±8.0%rdg±4dgt (40MΩ)
  • Continuity buzzer : buzzer sounds below 50±30Ω
  • Conductor size :  Ø33mm max.
  • Applicable : EC 61010-1
    • CAT IV 300V / CAT III 600V Pollution degree 2 (AC A),
    • CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V)
    • IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC),
      EN 50581 (RoHS)
  • Power source : R03/LR03 (AAA) (1.5V) × 2
    * continuous measuring time:
    approx. 120 hours (Auto power off: approx. 10 minutes)
  • Dimensions :  190(L) × 68(W) × 20(D)mm
  • Weight :  Approx. 120g (including batteries)
  • Accessories :  7107A (Test leads), 9160 (Carrying case), R03 (AAA) × 2,
  • Optional : Instruction Manual ,  (Multi-Tran)

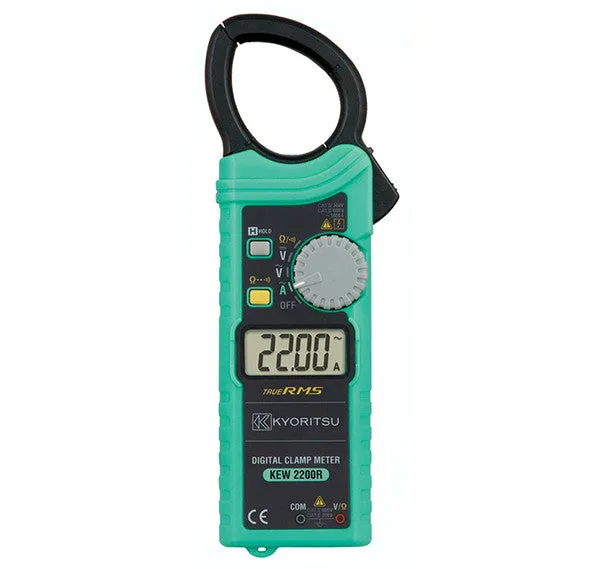

Kyoritsu Ac Digital Clamp Meter | Model : KM2200R

$ 132.00

$ 74.22
